SM8S Series(6600W)

Name: SM8S28CA
Brand: Shanghai Leiditech上海雷卯电子科技有限公司是专业的静电保护元件厂家,TVS二极管供应商;专业提供防雷防静电方案,电磁兼容EMC免费测试等服务,品质保证,库存充足,型号齐全,值得信赖,如有采购静电保护元件,TVS二极管需求,请联系雷卯,24小时服务热线:021-50828806.
SKU: 09931
Availability: InStock
Rating: 5 (1 reviews)

Inicio > Diodo de supresión de voltaje transitorio TVS > SM8S Series(6600W)

Características/aplicaciones Demostración de modelos similares Buscar materiales alternativos

Características/aplicaciones

DESCRIPTION:

SM8S Series TVS diodes can be used in sensitive electronics

protection against voltage transients induced by inductive load

switching and lighting, especially for automotive load dump

protection application.

FEATURES:

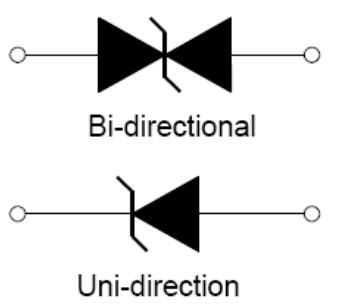

Available in unibi-directional polarity.

Low forward voltage drop & Low leakage current.

High surge capability.

Junction passivation optimized design passivated anisotropic rectifier technology.

TJ= 175 °C capability suitable for high reliability and automotive requirement.

Meets ISO7637-2 surge specification (varied by test condition).

Meets MSL level 1, per J-STD-020, LF maximum peak of 245°C.

AEC-Q101 qualified.

Compliant to ROHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

Demostración de modelos similares

SM6S15A SM6S15CA 4600 15.0 5 16.70 18.50 5 24.4 189.0 DO-218AB 车用

SM6S16A SM6S16CA 4600 16.0 5 17.80 19.70 5 26.0 177.0 DO-218AB 车用

SM6S17A SM6S17CA 4600 17.0 5 18.90 20.90 5 27.6 167.0 DO-218AB 车用

SM6S18A SM6S18CA 4600 18.0 5 20.00 22.10 5 29.2 158.0 DO-218AB 车用

SM6S20A SM6S20CA 4600 20.0 5 22.20 24.50 5 32.4 142.0 DO-218AB 车用

SM6S22A SM6S22CA 4600 22.0 5 24.40 26.90 5 35.5 130.0 DO-218AB 车用

SM6S24A SM6S24CA 4600 24.0 5 26.70 29.50 5 38.9 118.0 DO-218AB 车用

SM6S26A SM6S26CA 4600 26.0 5 28.90 31.90 5 42.1 109.0 DO-218AB 车用

SM6S28A SM6S28CA 4600 28.0 5 31.10 34.40 5 45.4 101.0 DO-218AB 车用

SM6S30A SM6S30CA 4600 30.0 5 33.30 36.80 5 48.4 95.0 DO-218AB 车用

SM6S33A SM6S33CA 4600 33.0 5 36.70 40.60 5 53.3 86.0 DO-218AB 车用

SM6S36A SM6S36CA 4600 36.0 5 40.00 44.20 5 58.1 79.0 DO-218AB 车用

SM8S15A SM8S15CA 6600 15.0 5 16.70 18.50 5 24.4 270.0 DO-218AB 车用

SM8S16A SM8S16CA 6600 16.0 5 17.80 19.70 5 26.0 253.0 DO-218AB 车用

SM8S17A SM8S17CA 6600 17.0 5 18.90 20.90 5 27.6 239.0 DO-218AB 车用

SM8S18A SM8S18CA 6600 18.0 5 20.00 22.10 5 29.2 226.0 DO-218AB 车用

SM8S20A SM8S20CA 6600 20.0 5 22.20 24.50 5 32.4 204.0 DO-218AB 车用

SM8S22A SM8S22CA 6600 22.0 5 24.40 26.90 5 35.5 186.0 DO-218AB 车用

SM8S24A SM8S24CA 6600 24.0 5 26.70 29.50 5 38.9 170.0 DO-218AB 车用

SM8S26A SM8S26CA 6600 26.0 5 28.90 31.90 5 42.1 157.0 DO-218AB 车用

/ LM10S26CAT 11000 26.0 1 28.90 31.90 5 27.0 300.0 DO-218AB可回扫车用

SM8S28A SM8S28CA 6600 28.0 5 31.10 34.40 5 45.4 145.0 DO-218AB 车用

/ LM10S28CAT 11000 28.0 1 31.10 34.40 5 29.0 290.0 DO-218AB可回扫车用

SM8S30A SM8S30CA 6600 30.0 5 33.30 36.80 5 48.4 136.0 DO-218AB 车用

SM8S32A SM8S32CA 6600 32.0 5 35.50 39.40 5 51.4 128.5 DO-218AB 车用

SM8S33A SM8S33CA 6600 33.0 5 36.70 40.60 5 53.3 124.0 DO-218AB 车用

/ LM10S33CAT 11000 33.0 1 35.70 40.60 5 32.0 310.0 DO-218AB可回扫车用

SM8S36A SM8S36CA 6600 36.0 5 40.00 44.20 5 58.1 114.0 DO-218AB 车用

SM8S40A SM8S40CA 6600 40.0 5 44.40 49.10 5 64.5 102.0 DO-218AB 车用

SM8S43A SM8S43CA 6600 43.0 5 47.80 52.80 5 69.4 95.1 DO-218AB 车用

Buscar materiales alternativos

The brand LEIDITECH offers ESD part numbers such as ESD0521C, which can replace ST's ESDALC6V1-1BU2.

The brand LEIDITECH offers ESD part numbers such as ESD0521C, which can replace ST's ESDALC6V1-1U2.

The brand LEIDITECH offers ESD part numbers such as ESD9D5V, which can replace ST's ESDALC6V1-1M2.

The brand LEIDITECH offers ESD part numbers such as ESDA0504T5, which can replace ST's ESDALC6V1M3.

The brand LEIDITECH offers ESD part numbers such as ESDA0504T5, which can replace ST's ESDALC6V1P3.

The brand LEIDITECH offers ESD part numbers such as ESDA0504T5, which can replace ST's ESDALC6V1P5.

The brand LEIDITECH offers ESD part numbers such as ESDA0504T5, which can replace ST's ESDALC6V1P6.

The brand LEIDITECH offers ESD part numbers such as ESDA0504T5, which can replace ST's ESDALC6V1W5.

The brand LEIDITECH offers ESD part numbers such as SDA0505T6, which can replace ST's ESDA6V1-5P6.

The brand LEIDITECH offers ESD part numbers such as SDA05CW, which can replace ST's ESDA6V1-5W6.

The brand LEIDITECH offers ESD part numbers such as SDA05CW, which can replace ST's ESDALC6V1-5M6.

The brand LEIDITECH offers ESD part numbers such as SDA0505T6, which can replace ST's ESDALC6V1-5P6.

The brand LEIDITECH offers ESD part numbers such as SDA05W5, which can replace ST's ESDA5V3SC5.

The brand LEIDITECH offers ESD part numbers such as SDA05W5, which can replace ST's ESDA5V3SC6.

The brand LEIDITECH offers ESD part numbers such as SDA05W5, which can replace ST's ESDA6V1M6.

The brand LEIDITECH offers ESD part numbers such as SDA05W5, which can replace ST's ESDA6V1P6.

The brand LEIDITECH offers ESD part numbers such as SDA05W5, which can replace ST's ESDA6V1SC5.

The brand LEIDITECH offers ESD part numbers such as SDA05W5, which can replace ST's ESDA6V1SC6.

The brand LEIDITECH offers ESD part numbers such as SDA05W5, which can replace ST's ESDA6V1W5.

The brand LEIDITECH offers ESD part numbers such as SDA1511CDN, which can replace ST's ESDA14V2-1BF3.

The brand LEIDITECH offers ESD part numbers such as SDA2411CDN, which can replace ST's ESDALC20-1BF4. The brand LEIDITECH of offers the ESD part number SM05, which can replace the ST's ESDAVLC6V1-1BT2.

The brand LEIDITECH of offers the ESD part number ULC0511CDN30, which can replace the ST's ESDAXLC4-1BF3.

The brand LEIDITECH of offers the ESD part number ULC0511CDN30, which can replace the ST's ESDAXLC6-1BT2.

The brand LEIDITECH of offers the ESD part number ULC0511CDN30, which can replace the ST's ESDAXLC6-1BT2Y.

The brand LEIDITECH of offers the ESD part number ULC0511CDN30, which can replace the ST's ESDAXLC6-1MY2.

The brand LEIDITECH of offers the ESD part number ULC0721C, which can replace the ST's ESDARF02-1BU2.

The brand LEIDITECH of offers the ESD part number ULC0721C, which can replace the ST's ESDARF02-1BU2CK.

The brand LEIDITECH of offers the ESD part number SAT100H200T, which can replace the ST's STPS40170C.

The brand LEIDITECH of offers the ESD part number SAT60TL45CPT, which can replace the ST's STPS60L30CW.

The brand LEIDITECH of offers the ESD part number SLT40L60FCT, which can replace the ST's STPS30L60CT.
