5KP Series(R6)

5KP Series(R6)
Part Number Power(W)
All
5000.0
5000
Vrwm(V)
All
5.0
6.5
7.0
7.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
180.0
190.0
200.0
210.0
220.0
250.0
Vbr(V)
All
6.4
7.2
7.8
8.3
8.9
9.4
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100.0
111.0
122.0
133.0
144.0
167.0
178.0
189.0
211.0
224.0
237.0
246.0
277.0
Vc(V)
All
9.2
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
292.0
310.0
329.2
349.5
371.1
425.0
Ipp(A)
All
12.0
13.7
14.6
15.5
16.5
17.5
18.2
19.3
20.6
24.0
26.0
28.3
30.9
34.3
36.5
39.7
41.4
44.3
48.6
51.7
53.5
57.5
60.7
64.7
68.8
72.1
77.6
86.1
93.9
103.0
110.0
119.0
129.0
141.0
155.0
172.0
181.0
193.0
205.0
216.0
233.0
252.0
275.0
294.0
325.0
347.0
367.0
388.0
417.0
448.0
544.0
Ir@25°C(μA)
All
1.0
2.0
5.0
10.0
20.0
50.0
150
Package
All
R6

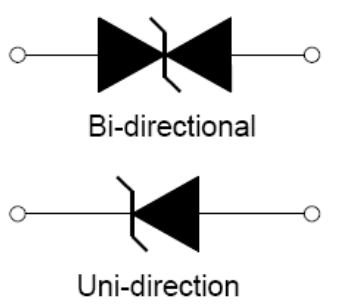

Inner Diagram Data sheet
5KP5.0A 5KP5.0CA 5000 5.0 6.4 9.2 544.0 150 R6 5KP5.0A 5KP5.0CA
5KP5.0A 5KP5.0CA
5KP6.5A 5KP6.5CA 5000.0 6.5 7.2 11.2 448.0 50.0 R6 5KP6.5A 5KP6.5CA
5KP6.5A 5KP6.5CA
5KP7.0A 5KP7.0CA 5000.0 7.0 7.8 12.0 417.0 20.0 R6 5KP7.0A 5KP7.0CA
5KP7.0A 5KP7.0CA
5KP7.5A 5KP7.5CA 5000.0 7.5 8.3 12.9 388.0 10.0 R6 5KP7.5A 5KP7.5CA
5KP7.5A 5KP7.5CA
5KP8.0A 5KP8.0CA 5000.0 8.0 8.9 13.6 367.0 10.0 R6 5KP8.0A 5KP8.0CA
5KP8.0A 5KP8.0CA
5KP8.5A 5KP8.5CA 5000.0 8.5 9.4 14.4 347.0 10.0 R6 5KP8.5A 5KP8.5CA
5KP8.5A 5KP8.5CA
5KP9.0A 5KP9.0CA 5000.0 9.0 10.0 15.4 325.0 10.0 R6 5KP9.0A 5KP9.0CA
5KP9.0A 5KP9.0CA
5KP10A 5KP10CA 5000.0 10.0 11.1 17.0 294.0 5.0 R6 5KP10A 5KP10CA
5KP10A 5KP10CA
5KP11A 5KP11CA 5000.0 11.0 12.2 18.2 275.0 5.0 R6 5KP11A 5KP11CA
5KP11A 5KP11CA
5KP12A 5KP12CA 5000.0 12.0 13.3 19.9 252.0 2.0 R6 5KP12A 5KP12CA
5KP12A 5KP12CA
5KP13A 5KP13CA 5000.0 13.0 14.4 21.5 233.0 2.0 R6 5KP13A 5KP13CA
5KP13A 5KP13CA
5KP14A 5KP14CA 5000.0 14.0 15.6 23.2 216.0 1.0 R6 5KP14A 5KP14CA
5KP14A 5KP14CA
5KP15A 5KP15CA 5000.0 15.0 16.7 24.4 205.0 1.0 R6 5KP15A 5KP15CA
5KP15A 5KP15CA
5KP16A 5KP16CA 5000.0 16.0 17.8 26.0 193.0 1.0 R6 5KP16A 5KP16CA
5KP16A 5KP16CA
5KP17A 5KP17CA 5000.0 17.0 18.9 27.6 181.0 1.0 R6 5KP17A 5KP17CA
5KP17A 5KP17CA
5KP18A 5KP18CA 5000.0 18.0 20.0 29.2 172.0 1.0 R6 5KP18A 5KP18CA
5KP18A 5KP18CA
5KP20A 5KP20CA 5000.0 20.0 22.2 32.4 155.0 1.0 R6 5KP20A 5KP20CA
5KP20A 5KP20CA
5KP22A 5KP22CA 5000.0 22.0 24.4 35.5 141.0 1.0 R6 5KP22A 5KP22CA
5KP22A 5KP22CA
5KP24A 5KP24CA 5000.0 24.0 26.7 38.9 129.0 1.0 R6 5KP24A 5KP24CA
5KP24A 5KP24CA
5KP26A 5KP26CA 5000.0 26.0 28.9 42.1 119.0 1.0 R6 5KP26A 5KP26CA
5KP26A 5KP26CA
5KP28A 5KP28CA 5000.0 28.0 31.1 45.4 110.0 1.0 R6 5KP28A 5KP28CA
5KP28A 5KP28CA
5KP30A 5KP30CA 5000.0 30.0 33.3 48.4 103.0 1.0 R6 5KP30A 5KP30CA
5KP30A 5KP30CA
5KP33A 5KP33CA 5000.0 33.0 36.7 53.3 93.9 1.0 R6 5KP33A 5KP33CA
5KP33A 5KP33CA
5KP36A 5KP36CA 5000.0 36.0 40.0 58.1 86.1 1.0 R6 5KP36A 5KP36CA
5KP36A 5KP36CA
5KP40A 5KP40CA 5000.0 40.0 44.4 64.5 77.6 1.0 R6 5KP40A 5KP40CA
5KP40A 5KP40CA
5KP43A 5KP43CA 5000.0 43.0 47.8 69.4 72.1 1.0 R6 5KP43A 5KP43CA
5KP43A 5KP43CA
5KP45A 5KP45CA 5000.0 45.0 50.0 72.7 68.8 1.0 R6 5KP45A 5KP45CA
5KP45A 5KP45CA
5KP48A 5KP48CA 5000.0 48.0 53.3 77.4 64.7 1.0 R6 5KP48A 5KP48CA
5KP48A 5KP48CA
5KP51A 5KP51CA 5000.0 51.0 56.7 82.4 60.7 1.0 R6 5KP51A 5KP51CA
5KP51A 5KP51CA
5KP54A 5KP54CA 5000.0 54.0 60.0 87.1 57.5 1.0 R6 5KP54A 5KP54CA
5KP54A 5KP54CA
